BrainCo Revo 2 Hand
BrainCo

BrainCo Revo 2 Hand

$4,700.00In stock
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

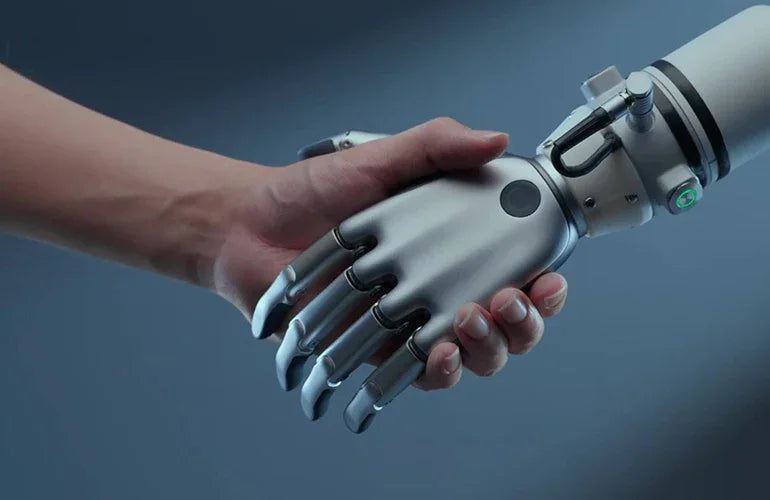

The Brainco Revo 2 (Without Tactile, Left) robotic hand from BrainCo targets developers building production or prototype robotic systems. Brainco Revo 2 (Without Tactile, Left) specifications include Degrees of Freedom of 21. Projects standardize on Brainco Revo 2 (Without Tactile, Left) when robotic hand accuracy and supportability matter

Delivery / Pickup Options
Order summaryUSD
Merchandise$4,700.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$175.25
Estimated total before tax$4,875.25

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

12-28V | 12-64V | 12-64V
Supply Voltage
Product rendering image: ≥50N
Full Fist Grip Force
0.8 kg
Net weight
160 × 76 × 38 mm
Dimensions
Product rendering image: ≥20kg
Max Payload

All Specifications

BrandBrainCo
CategoryRobotic Hand
AvailabilityIn stock
Net weight0.8 kg
Dimensions160 × 76 × 38 mm
Main Parametersdegree of freedom | 11（6 active）
WeightProduct rendering image: 383 g
Operating Noise (At 50cm)Product rendering image: ≤50dB
Repetitive Control Precision0.1° | 0.1° | 0.1°
Maximum Opening And Closing DistanceProduct rendering image: 100mm(from thumb to index finger)
Operating TemperatureProduct rendering image: -10 - 40℃ / 90%RH
Smart ProtectionProduct rendering image: Current protection, stall protection, high-temperature protection, anti-collision protection
Thumb FlexDegrees of Freedom: Flexion/Extension | Minimum Angle (°): 0 | Maximum Angle (°): 59
Thumb AuxDegrees of Freedom: Adduction/Abduction | Minimum Angle (°): 0 | Maximum Angle (°): 90
Index FingerDegrees of Freedom: Flexion/Extension | Minimum Angle (°): 0 | Maximum Angle (°): 81
Middle FingerDegrees of Freedom: Flexion/Extension | Minimum Angle (°): 0 | Maximum Angle (°): 81
Ring FingerDegrees of Freedom: Flexion/Extension | Minimum Angle (°): 0 | Maximum Angle (°): 81
Little FingerDegrees of Freedom: Flexion/Extension | Minimum Angle (°): 0 | Maximum Angle (°): 81
Restore Factory SettingsLong press for 5 seconds
Fist GestureShort press 2 times
Motor IDDescription
Motor StatusDescription
MOTOR IDLEJoint Idle
MOTOR RUNNINGJoint Running
MOTOR STALLJoint Stall
MOTOR TURBOturbo
InterfaceConnector Model
CAN FDA1257WV-S-2P-6T
Ether CATA1257WV-S-5P-6T
VCCXT30UPB-M
Max PayloadProduct rendering image: ≥20kg
Flexion/Extension SpeedProduct rendering image: ≤0.65s
Product FAQ

Questions about BrainCo Revo 2 Hand

Purchasing, compatibility, and support information from Robotics Center.

How much does the BrainCo Revo 2 hand cost?

The Revo 2 hand is listed at $4,700 from Robotics Center. Configuration affects the final figure, so a quote confirms the exact price for the variant you need.

Which BrainCo Revo 2 variants are available?

The Revo 2 ships in tactile and non-tactile variants, and in left and right hands. Robotics Center also carries the Revo 2 as a factory-integrated option on several Unitree platforms, so tell us the arm or robot it is going on and we will confirm which variant fits.

Can I buy the BrainCo Revo 2 in the United States?

Yes. Robotics Center carries the Revo 2 with US-based purchasing and ships from San Francisco. Shipping is calculated from your delivery address at checkout, and local pickup carries no shipping charge.

Is the BrainCo Revo 2 returnable?

No. Sales are final, so we confirm variant, mounting and interface with you in writing before you order.

After you order

What happens next

Fast dispatch

In-stock hardware ships from San Francisco in ~48 hours; custom builds run 2–4 weeks.

Warranty & support

Every order includes warranty coverage and a direct line to our robotics engineers.

Onboarding

We help you go from procurement to first successful run with setup and integration support.
